SUPREME S650 PHOS

At Everhaus Windows, we are proud to offer the SUPREME S650 PHOS, a thermally insulated sliding system designed for projects that demand expansive views with minimal visible aluminium. This system achieves large, elegant glazing surfaces while maintaining high functionality and a sleek, modern aesthetic.


The SUPREME S650 PHOS is the perfect choice for those seeking a minimalist sliding system that delivers on performance, security, and aesthetic appeal. Its innovative design and superior engineering make it a standout solution for modern architectural projects.

For more information or to discuss how the SUPREME S650 PHOS can be integrated into your next project, please contact Everhaus Windows.

A living room with a couch and chairs and a large window with a view of a forest.

Advantages

  • Enhanced natural light thanks to the system’s minimal design and the wide glazing surfaces
  • High energy savings thanks to exceptional energy efficiency
  • High security level
  • Exceptional sound insulation
  • Maximum ease of use and high functionality
  • Ease of access according to specifications for people with special needs and children
  • Wide variety of typologies
  • Ideal for wide spans
  • Exceptional quality with certified performances
  • Increased static loads and functionality in case of severe weather conditions
A computer generated image of a sliding glass door

Specifications

WINDOW TYPES THERMAL INSULATION EXTERIOR SHAPES UF
Hinged Yes Flat from 3,8 W/m2K
MINIMUM THRESHOLD HEIGHT BURGLAR RESISTANCE WATER TIGHTNESS SASH WEIGHT
Concealed profiles RC2 9A up to 600 Kg
UW MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (ADJOINING PROFILE) SEALING METHOD MECHANISM
1,1 W/m²K 122 m Perimetrical with tri-fin brushes Alumil
MAXIMUM GLAZING THICKNESS WIND LOAD RESISTANCE TYPE OF THERMAL INSULATION TYPES OF TYPOLOGY
46 mm C2 Polyamides, PVC Horizontal sliding sashes, Multiple tracks, Meeting stile, Sliding into the wall cavity, Corner typologies
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT AIR PERMEABILITY GLAZING TYPE
Concealed profiles 4 Triple

Certificates

A red and black logo for a company called atg
A logo for dta document technique d' application supreme s77
A certified cradle to cradle silver logo
The eco platform epd verified logo is green and black.
A blue sign that says aluminum ok recycled and tuv austria architectural aluminum profiles

More sliding

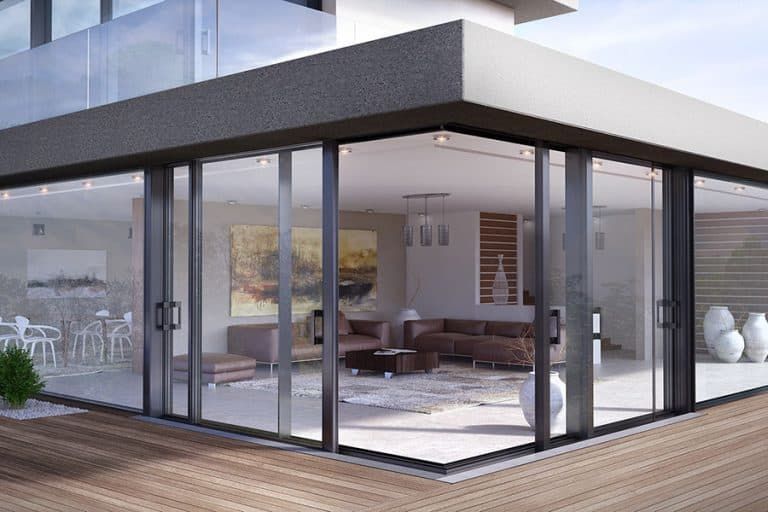

A large house with a lot of windows and sliding glass doors.
